Hydraulic Winches for Knuckle Boom Cranes

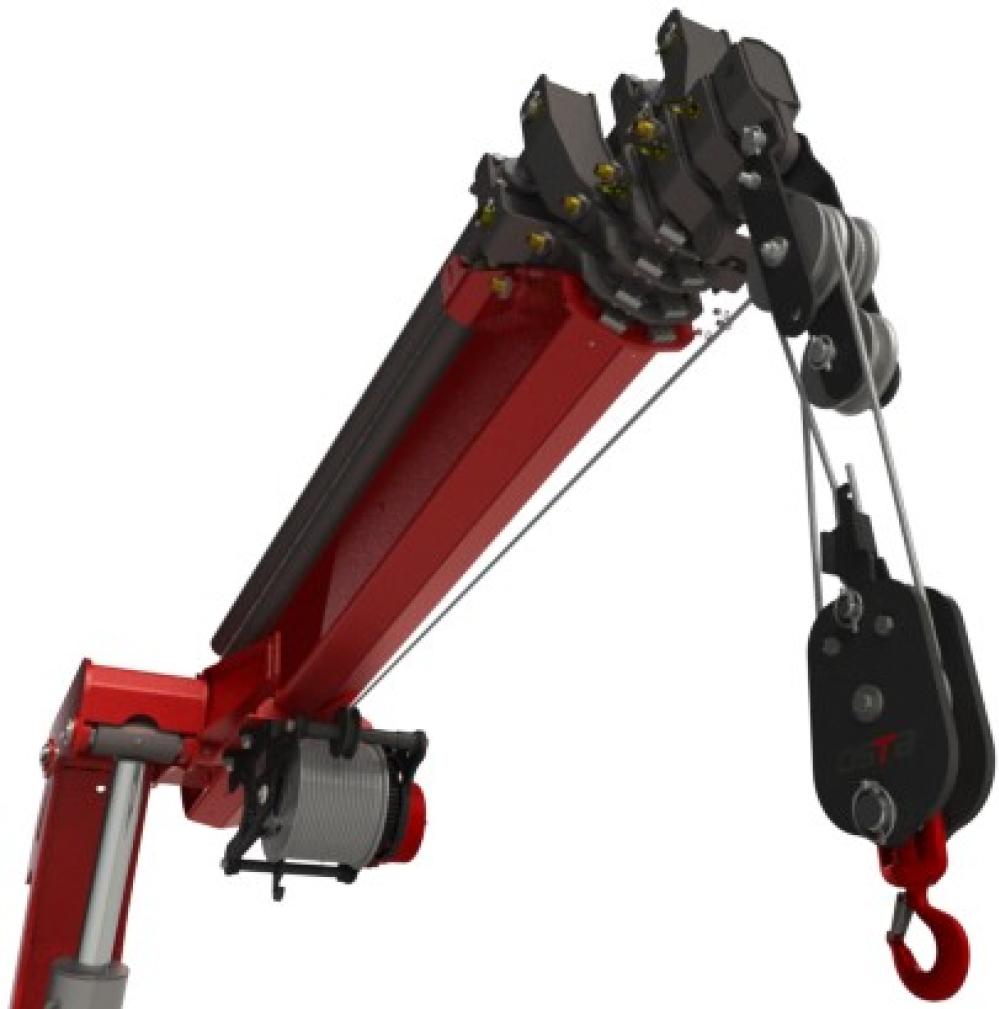

The Hydraulic Winch for Knuckle Boom Cranes by Elevare Latina expands the operational capabilities of truck mounted cranes by providing controlled vertical lifting, extended reach and access to locations where traditional hook operations become limited.
Designed for demanding lifting applications, the system allows operators to position loads with greater precision, improve lifting efficiency and safely handle materials in confined spaces, deep excavations, elevated structures and hard-to-reach work areas.
By adding a hydraulic winch system to a knuckle boom crane, companies can increase equipment versatility while reducing operational limitations commonly encountered during complex lifting projects.
Operational Benefits
• Greater vertical lifting capability.
• Improved load positioning accuracy.
• Access to confined and restricted work areas.
• Increased reach below ground level.
• Enhanced productivity during lifting operations.
• Reduced crane repositioning requirements.
• Better control when handling delicate or high-value loads.
• Expanded operational range for truck mounted cranes.
• Faster material handling in construction and industrial environments.
• Increased versatility for utility, infrastructure and maintenance projects.
Technical Features
• Hydraulic drive system.
• Compatible with knuckle boom cranes.
• Reinforced steel construction.
• Heavy-duty lifting components.
• Engineered for demanding field applications.
• Available in multiple configurations according to crane capacity and operational requirements.
• Designed for professional material handling operations.
Why Use a Hydraulic Winch on a Knuckle Boom Crane?
While a standard crane hook performs well in conventional lifting scenarios, many projects require additional vertical reach and precise load control.
A hydraulic winch allows operators to lower loads into excavations, position equipment inside structures, move materials over obstacles and perform lifting tasks where the crane boom cannot be directly aligned with the load.
This makes the hydraulic winch one of the most valuable crane attachments for companies involved in construction, utility services, telecommunications, industrial maintenance, infrastructure projects and specialized lifting operations.

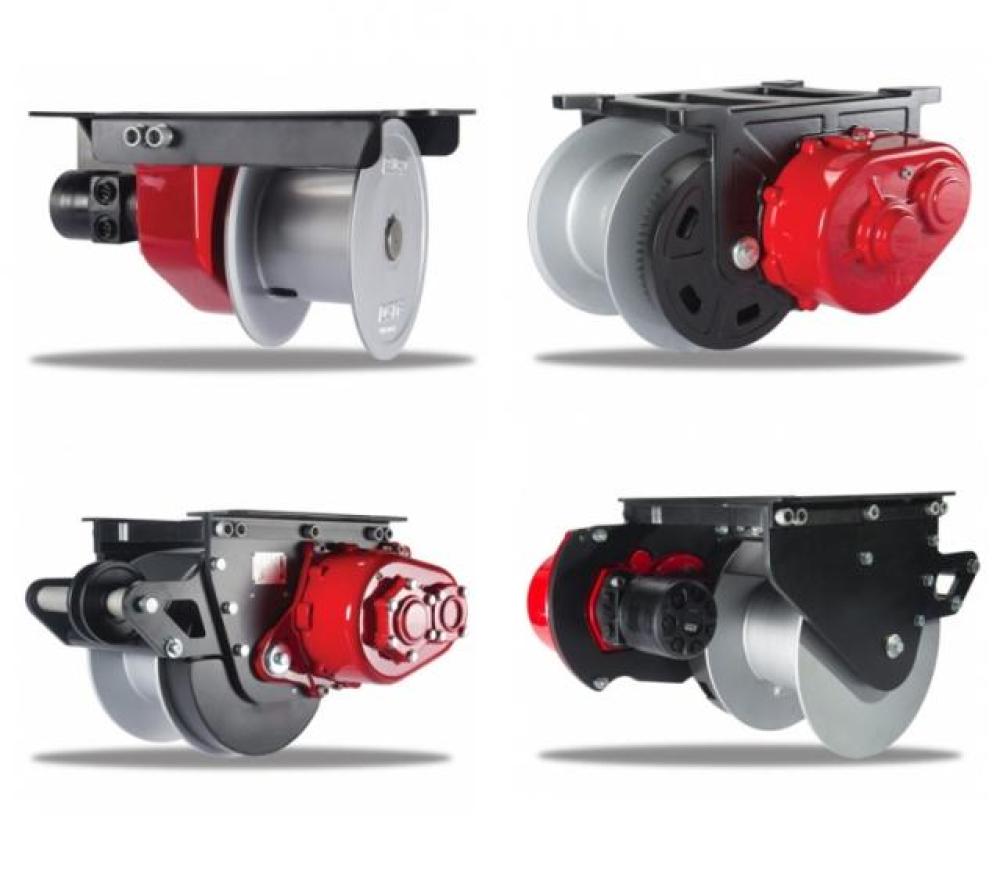

AVAILABLE MODELS
OS-303M HYDRAULIC WINCH
Recommended for Knuckle Boom Cranes from 8,000 to 20,000 kgf·m
Maximum Lifting Capacity: 3,150 kg
Single Line: 1,050 kg
Double Line: 2,100 kg
Triple Line: 3,150 kg
Ø 9.5 mm × 50 m Rotation-Resistant Wire Rope
OS-306M HYDRAULIC WINCH
Recommended for Knuckle Boom Cranes from 35,000 to 60,000 kgf·m
Maximum Lifting Capacity: 6,150 kg
Single Line: 2,050 kg
Double Line: 4,100 kg
Triple Line: 6,150 kg
Ø 11 mm × 60 m Rotation-Resistant Wire Rope
OS-308M HYDRAULIC WINCH
Recommended for Knuckle Boom Cranes from 35,000 to 60,000 kgf·m
Maximum Lifting Capacity: 8,000 kg
Single Line: 2,800 kg
Double Line: 5,600 kg
Triple Line: 8,000 kg
Ø 11 mm × 60 m Rotation-Resistant Wire Rope
OS-310M HYDRAULIC WINCH
Recommended for Knuckle Boom Cranes from 45,000 to 80,000 kgf·m
Maximum Lifting Capacity: 10,000 kg
Single Line: 3,500 kg
Double Line: 7,000 kg
Triple Line: 10,000 kg
Ø 13 mm × 60 m Rotation-Resistant Wire Rope
OS-414M HYDRAULIC WINCH
Recommended for Knuckle Boom Cranes from 45,000 to 80,000 kgf·m
Maximum Lifting Capacity: 14,000 kg
Single Line: 3,500 kg
Double Line: 7,000 kg
Triple Line: 10,000 kg
Four-Part Line: 14,000 kg
Ø 13 mm × 60 m Rotation-Resistant Wire Rope
Standard Package
• Integrated Brake Control System

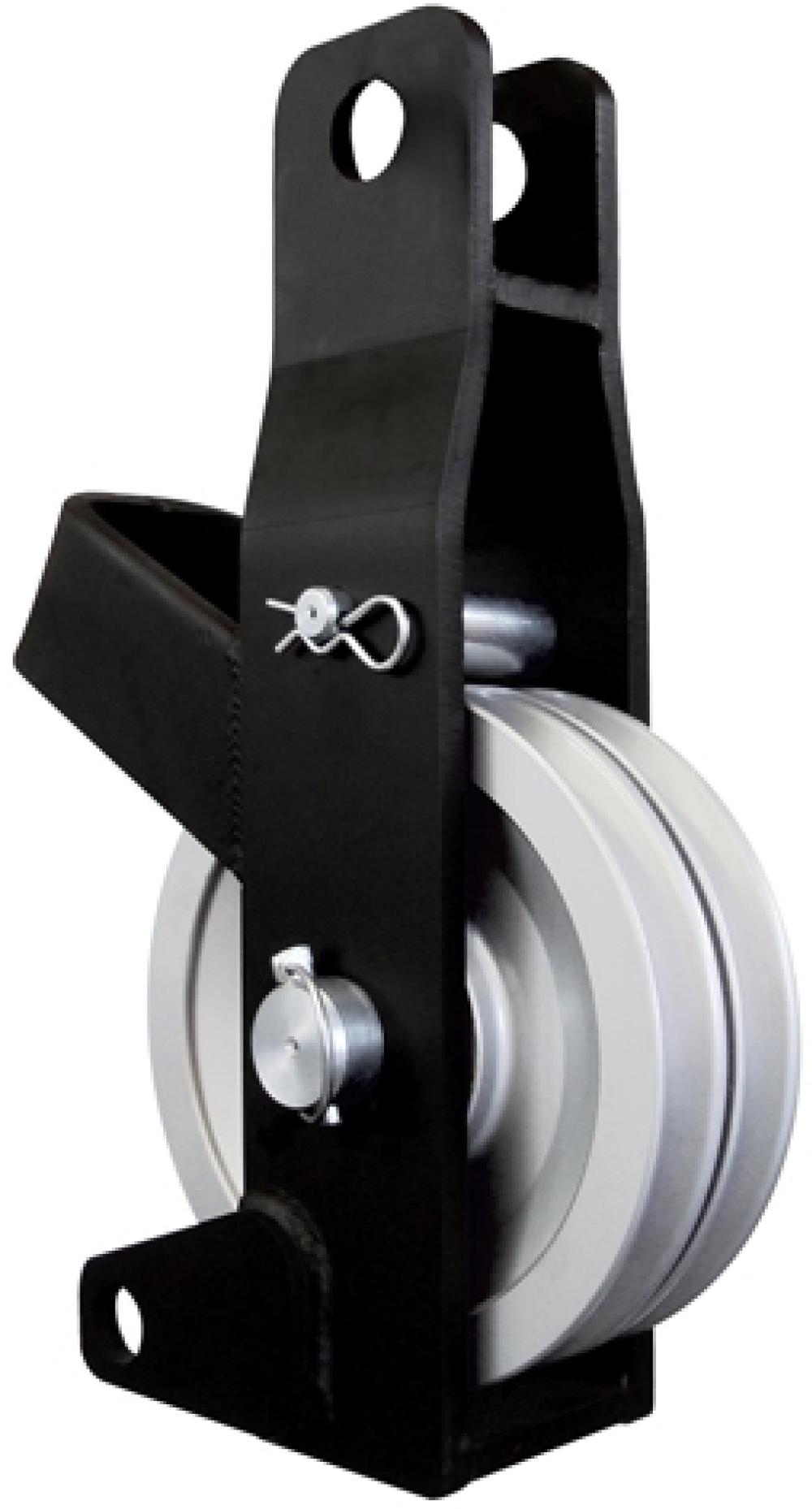

• Upper and Lower Reeving Blocks Included
• Hydraulic Motor
• Safety Relief Valve
Applications
• Utility and power line projects.
• Telecommunications installation and maintenance.
• Construction sites.
• Industrial plant maintenance.
• Structural steel erection.
• Equipment installation.
• Underground and excavation work.
• Bridge and infrastructure projects.
• Material handling operations.
• Specialized lifting services.
• Rooftop equipment placement.
• Lifting operations requiring extended vertical reach.
Industries Served
• Construction Contractors.
• Utility Companies.
• Telecommunications Providers.
• Industrial Maintenance Contractors.
• Infrastructure Companies.
• Equipment Rental Fleets.
• Oil and Gas Service Providers.
• Renewable Energy Projects.
• Municipal Service Contractors.
• Material Handling Operations.
Elevare Latina develops premium crane attachments and lifting solutions designed to improve productivity, safety and operational flexibility. Built for demanding field conditions, our hydraulic winches help contractors, utility companies and lifting professionals maximize the performance of their knuckle boom crane fleets throughout North America, Latin America and international markets.
